All models XFRAME X6, X8, X10 , X12, X16 and X16 PLUS are designed and dimensioned according to the Eurocode.


X6

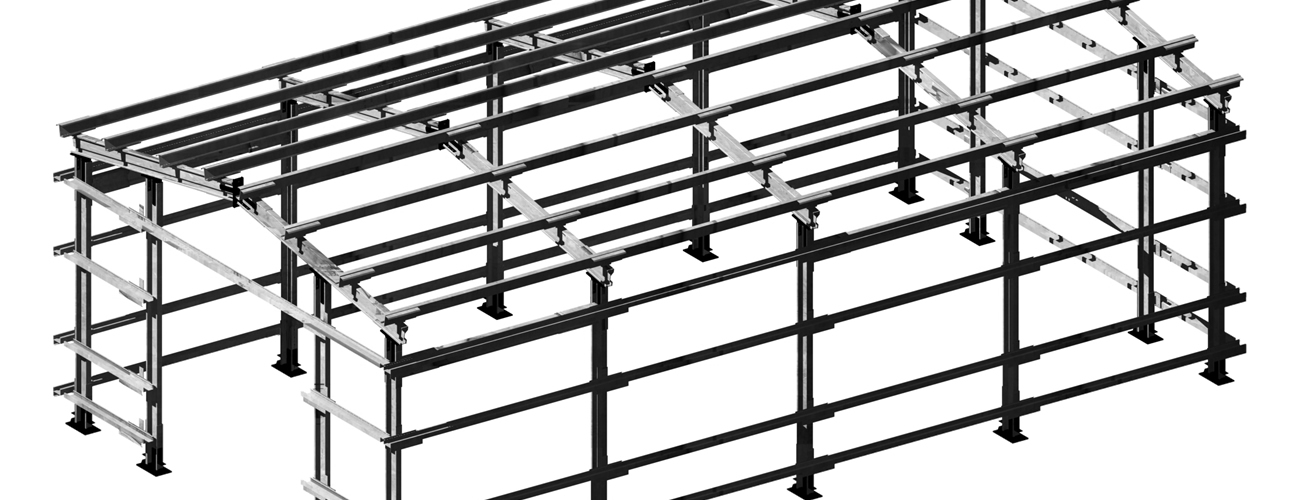

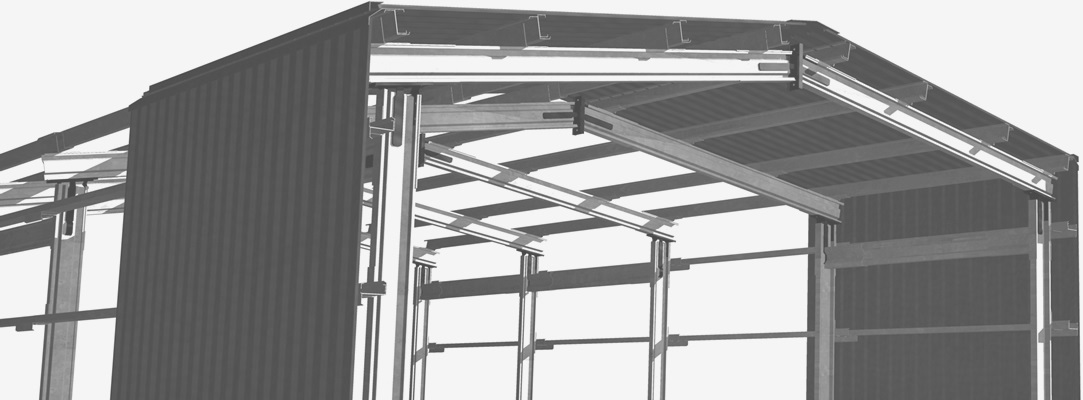

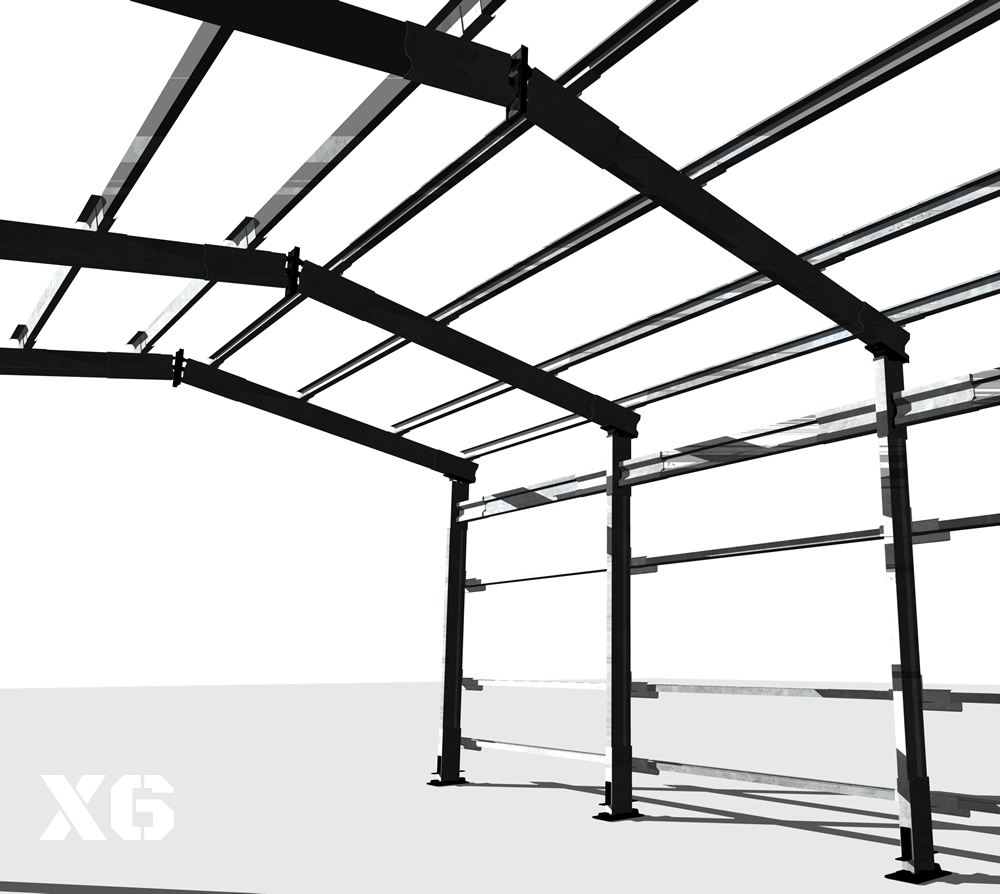

Equipment consisting of Sigma 240 columns with 3.6 m in length, Sigma 240 beams with 3.6 m in length.
Baseplate for connection between foundation and pillar.

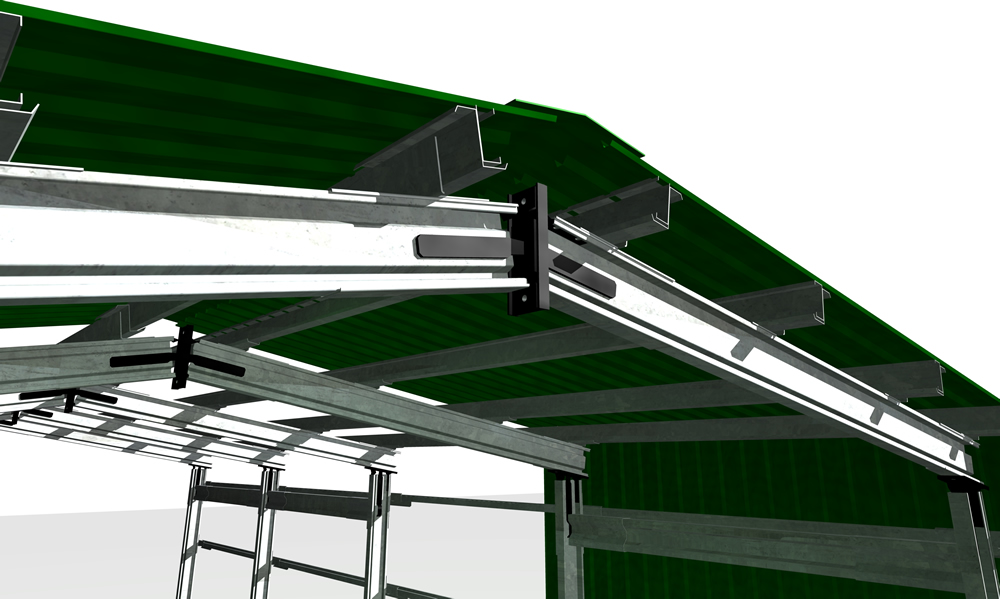

10G connection elements.

Sizes and prices

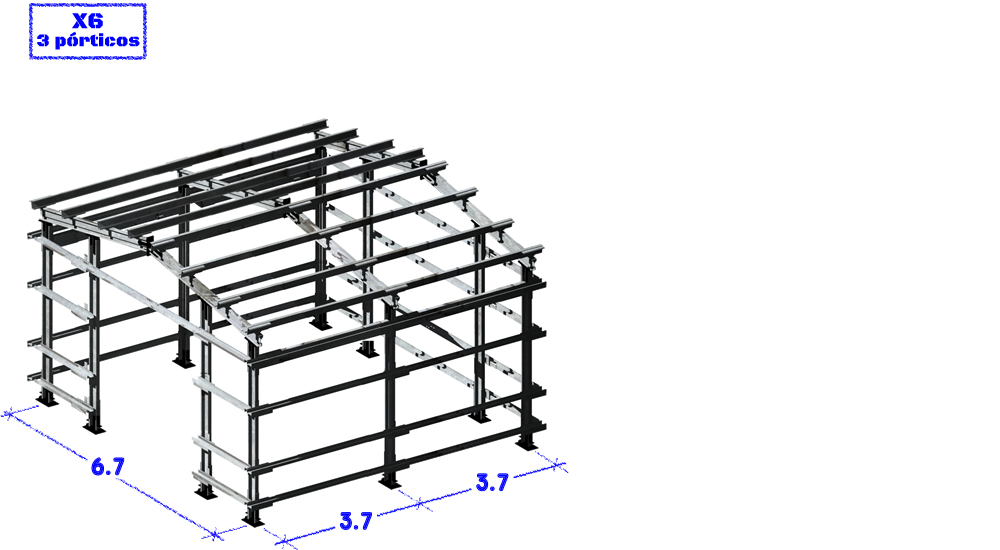

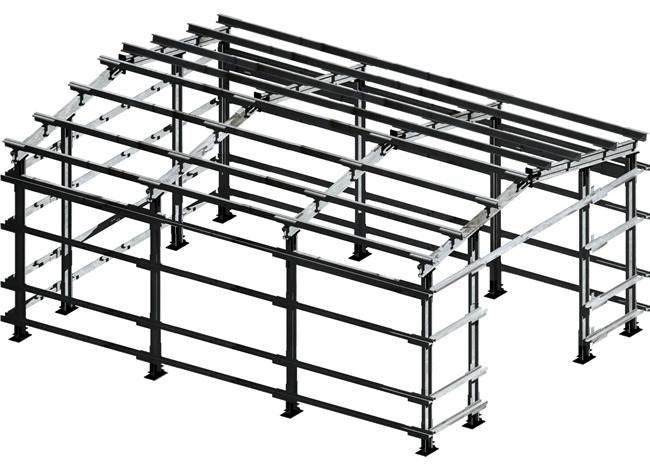

3 portal frames
Length x Width (m) 7.4 x 6.7
Interior area (m2) 49.5
Minimum exterior area (m2) 58.4
Price Wireframe (€)

Prices(€)

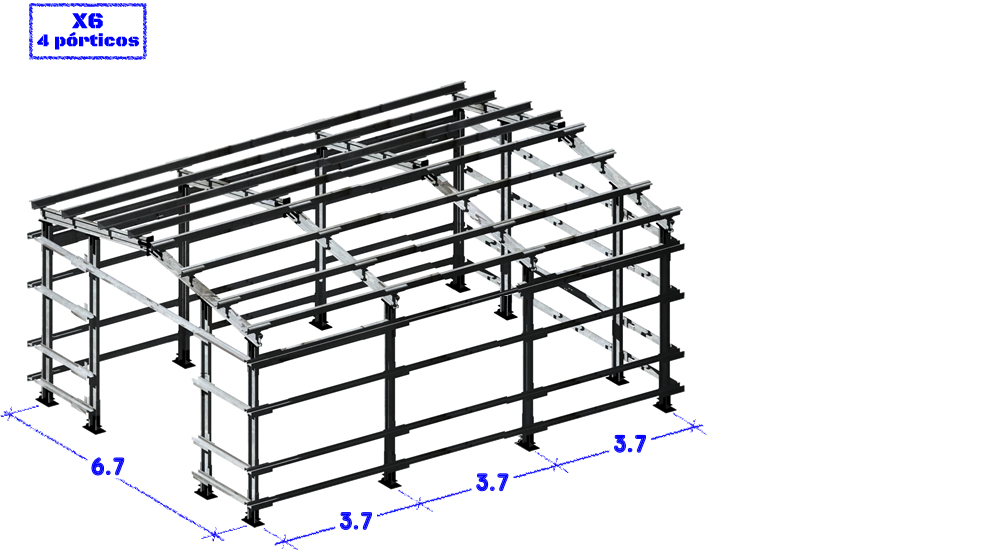

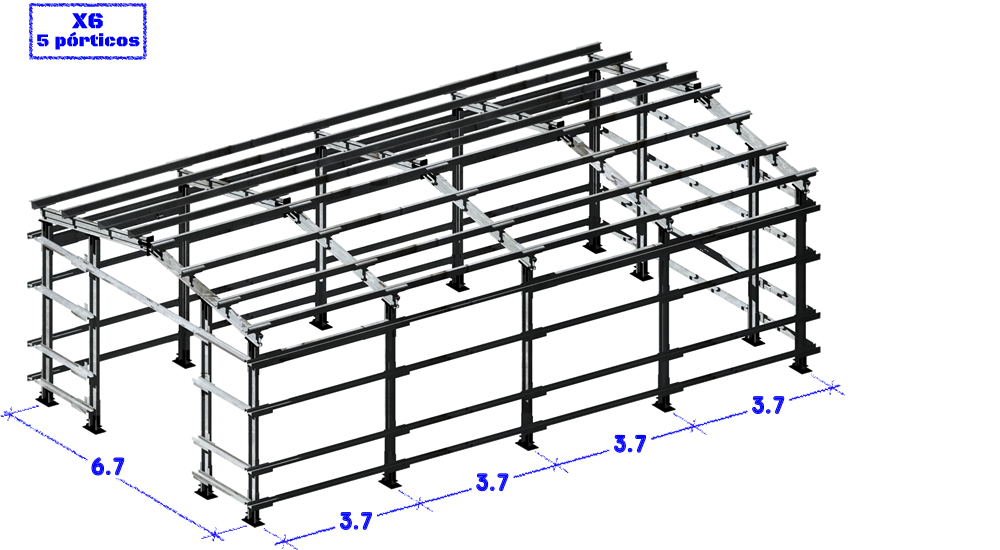

4 portal frames 5 portal frames
Length x Width (m) 11.1 x 6.714.8 x 6.7
Interior area (m2) 74.499.2
Minimum exterior area (m2) 85.0110.0
Price Wireframe (€)

Prices(€)

Prices(€)

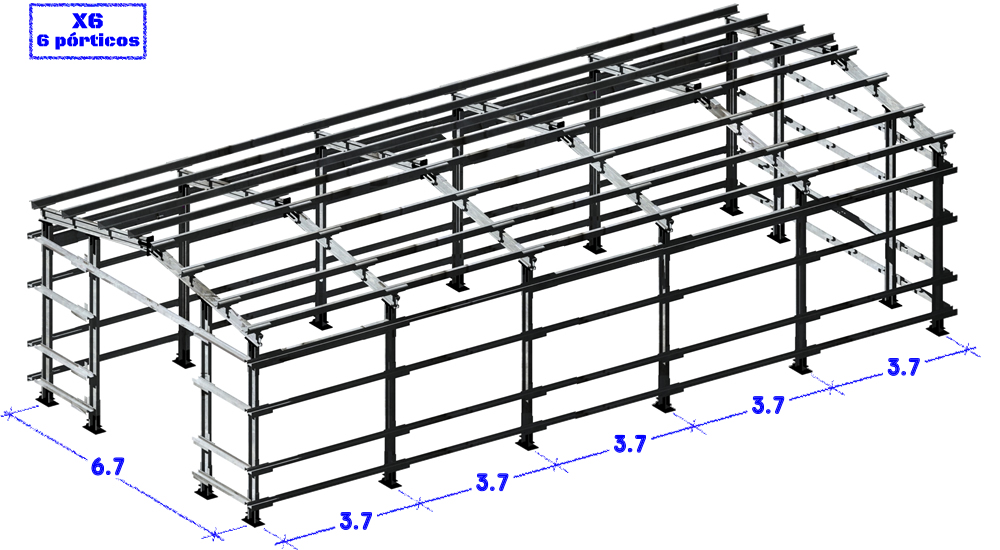

6 portal frames
Length x Width (m) 18.5 x 6.7
Interior area (m2) 123.9
Minimum exterior area (m2) 139.4
Price Wireframe (€)

Prices(€)



Dimensions



X6 Model

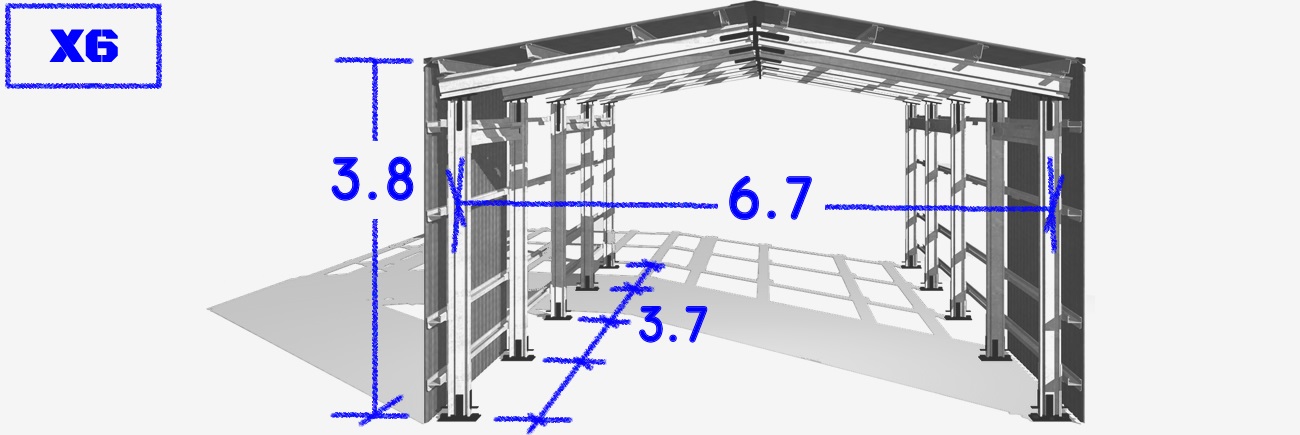

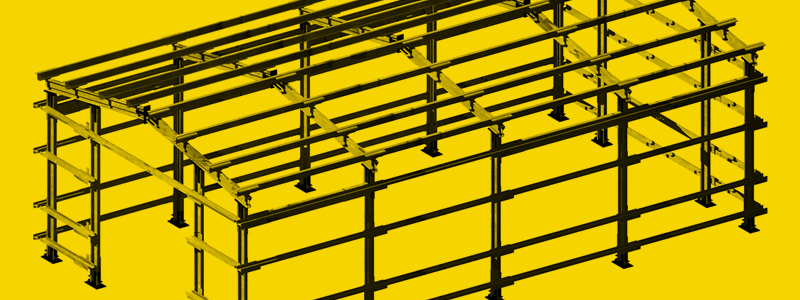

System designed for use with Sigma 240 cold rolled profiles as primary structural elements, and 14G interconnecting elements. Span: 6.7 m, spaced 3.10 m, with slopes of 14 degrees. Form factors (relation between height and length) specific for each model. Sections properties calculated according to Eurocode 3, based on results of real-scale tests and finite element analysis.
The steel has a Z275 galvanizing coating.





# Fully removable and transportable equipment.
# Galvanized steel structure with quality connection nodes, bolted for better tuning and adjustment.



5-year anti-corrosion guarantee for all structures located less than 5.0 km from the seafront and at altitudes above 800 m.


10-year anti-corrosion guarantee for all structures located more than 5.0 km from the seafront and at altitudes below 800 m.


The X6 and X8 models are designed for altitudes up to 800 m and winds up to 120 km/h.


The X10 and X12 models are designed for altitudes up to 1200m and winds up to 120km/h. X16 and X16 PLUS are designed for altitudes up to 800m and winds up to 120km/h.

X10     X12     X16     X16P

All models XFRAME X6, X8, X10 , X12, X16 and X16 PLUS are designed and dimensioned according to the Eurocode.

XFRAME   Models & sizes:
